10pcs for ZIPPY VM-05B-00D0-Z 20g .187" Microswitch 5.5A 250VAC Replacement Microstiches for Arcade Pushuttons Joysticks
10pcs for ZIPPY VM-05B-00D0-Z 20g .187" Microswitch 5.5A 250VAC Replacement Microstiches for Arcade Pushuttons Joysticks
Couldn't load pickup availability
10pcs for ZIPPY VM-05B-00D0-Z 20g .187" Microswitch 5.5A 250VAC Replacement Microstiches Snap Action Microswitches Micro Switchesfor Arcade Pushuttons Joysticks
Zippy is a switch brand that has been around since the early 1980’s and is relatively well known, also in Europe. A public company listed on the Taiwan stock exchange, Zippy has an outstanding range of snap action microswitches – a genuine expert in their field – that have been designed-in to numerous demanding applications, both in the automotive and industrial sectors. Manufacturing locations in both Taiwan and mainland China provide Zippy with a great deal of flexibility and facilitate the market approach required in a highly competitive area.
Manufactured with a light 20g operating force and 0.187" blade connectors for easy connections. Buttons using this switch will be easier to press than the ones with our 50g Zippy or 75g Cherry switches.
Features:
Highly reliable and versatile snap action switch
Super soft click, 20 grams force
Wide variety of electrical ratings from 0.1A to 5.5A 125/250V AC
Market-leading 5.5A rating available for demanding applications
5.5A 125/250V AC variant certified by UL to withstand min. 100000 electrical cycles
4.8 mm quick connect terminals
Wide variety of standard lever actuators
Mechanical service life min. 1 million operations
Specification:
Zippy Part: VM-05B-00D0-Z
Operating Force: 20 grams
Rating: 5.5A 125/250VAC
Operating frequency(mechanical): 120 Operation / mim
Operating frequency(electrical): 10~30 Operation / mim
Contact resistance: 100m Ω(max)
Insulation resistance(at 500 VDC) 100M Ω(Min)
Service life(mechanical) : Min.10,000,000 Operations
Service life(electrical): 5.5A-Min.10,000 Operations
Size:
This Listing Include:

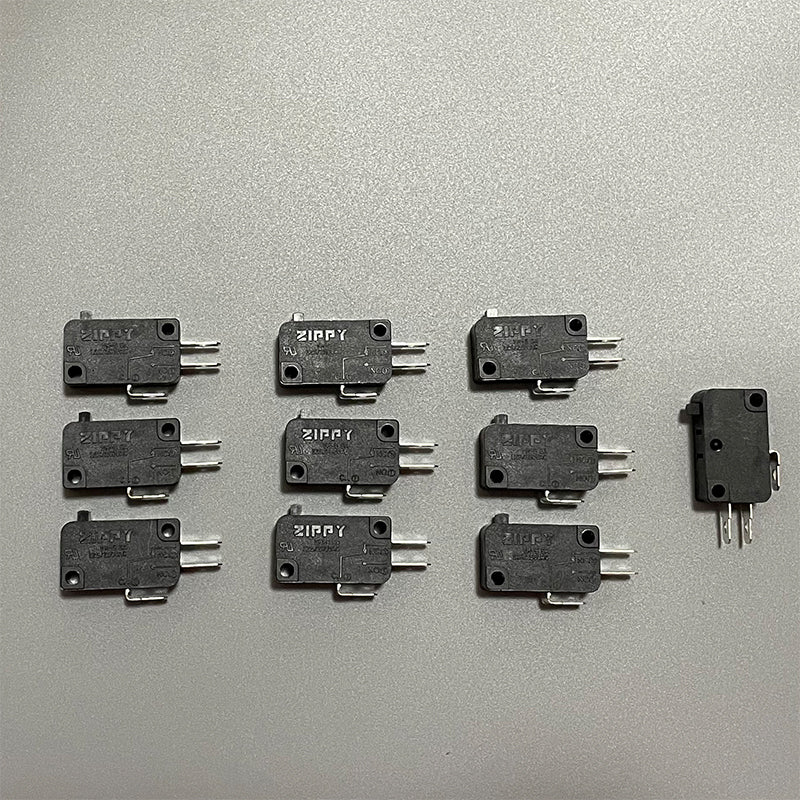

10pcs original ZIPPY VM-05B-00D0-Z 20g .187" Microswitch
